Multi-Format Retractable (MFR)

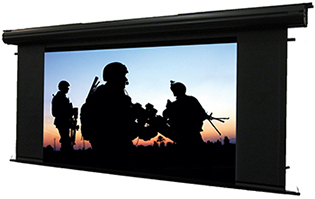

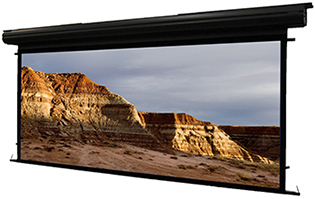

The new Multi-Format Retractable screen takes our patented, award-winning retractable to the next level. With either a lateral system (two side masks) to display 16:9 while maintaining a constand image height on a 2.37 native screen, or a horizontal system (one top mask) to display 2.40 while maintaining a constant image width on a 16:9 native screen.
Seymour-Screen Excellence's electrically retractable screens are the only retractable screens in the world that feature a fabric velvet border. With multiple times
more light-absorbing power, our Infinite Black™ velvet borders perfectly absorb the overscan pixels and frame your image with a sharp, high-contrast edge. Using patented design features, our retractables also feature a stealth
Uni-tab™ system, hiding the side tension cables behind the Infinite Black velvet borders so the screens don't have
a huge width penalty or hourglass shape. With
our industry exclusive velvet, your screen will have additional flexibility in how you frame different aspect ratios, such as 1.85 content on a 16:9 screen, or 2.40 content on a 2.37 screen.
The 5.8" high x
10.9" deep extruded aluminum case is finished in your choice of black, white or custom colors. The case
features four on-ceiling mounting rails extending from the
ends, adjustable from one to three inches.
With quiet 120v European 4-wire motors and the optional external control box, actuating the screen can be accomplished with wall switches, infrared (IR) receivers, Vdc triggers, radio frequency (RF) receivers, or several other special order options.
| 1.78 native | Image W | Image H | Image D | Masked | Case W | Batten W |
|---|---|---|---|---|---|---|
| MFR70HD | 70.0" | 39.1" | 80.2" | 29.2"h (75.8"d) | 83.8" | 81.9" |
| MFR80HD | 80.0" | 44.8" | 91.7" | 33.3"h (86.7"d) | 93.8" | 91.9" |
| MFR90HD | 90.0" | 50.4" | 103.2" | 37.5"h (97.5"d) | 103.8" | 101.9" |
| MFR96HD | 96.0" | 53.8" | 110.0" | 40.0"h (104.0"d) | 109.8" | 107.9" |
| MFR100HD | 100.0" | 56.0" | 114.6" | 41.7"h (108.3"d) | 113.8" | 111.9" |
| MFR110HD | 110.0" | 61.6" | 126.1" | 45.8"h (119.2"d) | 123.8" | 121.9" |
| MFR120HD | 120.0" | 67.3" | 137.6" | 50.0"h (130.0"d) | 133.8" | 131.9" |
| MFR130HD | 130.0" | 73.1" | 149.2" | 54.2"h (140.8"d) | 143.8" | 141.9" |
| MFR140HD | 140.0" | 78.7" | 160.6" | 58.3"h (151.7"d) | 153.8" | 151.9" |
| MFR150HD | 150.0" | 84.3" | 172.1" | 62.5"h (162.5"d) | 163.8" | 161.9" |
| 2.37 native | Image W | Image H | Image D | Masked | Case W | Batten W |
|---|---|---|---|---|---|---|
| MFR70WS | 70.0" | 29.5" | 76.0" | 51.9"w (59.6"d) | 83.8" | 81.9" |
| MFR80WS | 80.0" | 33.7" | 86.8" | 59.2"w (67.9"d) | 93.8" | 91.9" |
| MFR90WS | 90.0" | 37.9" | 97.7" | 66.7"w (76.5"d) | 103.8" | 101.9" |
| MFR96WS | 96.0" | 40.5" | 104.2" | 71.1"w (81.6"d) | 109.8" | 107.9" |
| MFR100WS | 100.0" | 42.1" | 108.5" | 74.1"w (85.1"d) | 113.8" | 111.9" |
| MFR110WS | 110.0" | 46.4" | 119.4" | 81.4"w (93.4"d) | 123.8" | 121.9" |
| MFR120WS | 120.0" | 50.6" | 130.2" | 88.9"w (102.0"d) | 133.8" | 131.9" |
| MFR130WS | 130.0" | 54.8" | 141.1" | 96.4"w (110.6"d) | 143.8" | 141.9" |
| MFR140WS | 140.0" | 59.0" | 151.9" | 103.6"w (118.9"d) | 153.8" | 151.9" |
| MFR150WS | 150.0" | 62.5" | 162.5" | 111.1"w (127.5"d) | 163.8" | 161.9" |
Below is the white pearl gold, five-coat gloss finish
Below is the Infinite Black™ velvet finish
Below is the natural cherry hardwood veneer finish (other hardwoods available)
Below is a close up picture of the ultrafine, ISF-certified Enlightor-4K screen material before our new Uni-tab feature was released. For an appreciation of how fine this is, the black velvet side border should be sized on your monitor at two inches, and the stainless steel tension cable is only 1/32 of an inch in diameter. Want an extreme closeup? Click here for the eight megapixel picture. To return to the proper perspective, shrink it back down to a two inch wide border.
Handling any pixel density with a moire-proof weave, certified perfect white balance, the 4K also easily lets the sound pass through without any need for EQ. Used in ISF training courses at CEDIA, the Enlightor-4K is a true reference screen material.
RM screens offer many exclusive features
- Velvet borders The only retractable screen in the world with fabric crushed velvet borders for complete overscan absorption.
- Stealth tab tensioned Patened tab tensioning hides two inches of the tension system for a concealed, sophisticated look.
- Uni-tab Patened single tab on each side provides perfectly continuous tension.
- Enlightor-4K fabric Uncompromised image and sound quality.
- Integrated black backing Allows use in front of standard TVs and light colored surfaces.
- Extruded aluminum case, automotive paint Thick wall, custom extruded aluminum cases in your choice of black, white, premium 5-coat black pearl blue, white pearl gold, or custom finishes.
- Motor control options: External, 4-wire control box, wall switch, IR receivers (black, white, or J-box), Vdc trigger, RF receiver, RS-232, Ethernet, Z-wave.
- No moiré Ideal for use with any projector.
