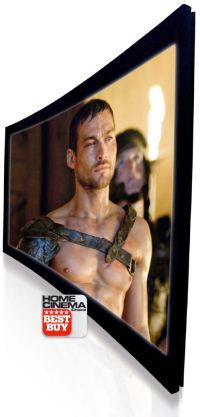

VistaCurve Screens



Seymour-Screen Excellence's VistaCurve™ projection screens have been designed to provide the perfect match to images projected through an anamorphic lens. Ideal cinematic projection is achieved only with CinemaScope aspect ratio, which is the format adopted for production of most large-budget films. The unique immersion provided by the widescreen imaging is further enhanced by a curved screen, as the edges of the screen define a more lifelike and enveloping space.

Perfectly correlated to the panamorphic projection, the VistaCurve offers five different radii to match the actual size of the screen.  The VistaCurve screens are intended for use with an anamorphic lens in order to correct for geometric distortion and to improve imersion, but the aesthetic benefits are undeniable.  Once seen, the VistaCurve is a screen you won't want to live without.

The VistaCurve available in both the Reference extrusion as well as the Series-3.

The VistaCurve is also available in native 16:9 (1.78) upon request, as well as any other custom sizing to the 0.1" resolution.

2.37 Image W Image H Image D Total Radius
RFV80WS
3FV80WS
80.0" 33.7" 86.8" 87.5" x 41.2"
86.7" x 40.4"
42.7'
40'
RFV90WS
3FV90WS
90.0" 37.9" 97.7" 97.5" x 45.4"
96.7" x 44.6"
42.7'
40'
RFV96WS
3FV96WS
96.0" 40.5" 104.2" 103.5" x 48.0"
102.7" x 47.2"
42.7'
40'
RFV100WS
3FV100WS
100.0" 42.1" 108.5" 107.5" x 49.6"
106.7" x 48.8"
42.7'
40'
RFV110WS
3FV110WS
110.0" 46.4" 119.4" 117.5" x 53.9"
116.7" x 53.1"
49.2'
40'
RFV120WS
3FV120WS
120.0" 50.6" 130.2" 127.5" x 58.1"
126.7" x 57.3"
49.2'
40'
RFV130WS
3FV130WS
130.0" 54.8" 141.1" 137.5" x 62.3"
136.7" x 61.5"
49.2'
40'
RFV140WS
3FV140WS
140.0" 59.0" 151.9" 147.5" x 66.5"
146.7" x 65.7"
55.8'
40'
RFV150WS
3FV150WS
150.0" 63.2" 162.8" 157.5" x 70.7"
156.7" x 69.9"
55.8'
40'
RFV160WS
3FV160WS
160.0" 67.5" 173.7" 167.5" x 75.0"
166.7" x 74.2"
55.8'
40'
RFV170WS
3FV170WS
170.0" 71.7" 184.5" 177.5" x 79.2"
176.7" x 78.4"
62.3'
40'
RFV180WS
3FV180WS
180.0" 75.9" 195.3" 187.5" x 83.4"
186.7" x 82.6
62.3'
40'
RFV190WS
3FV190WS
190.0" 80.1" 206.2" 197.5" x 87.6"
196.7" x 86.8"
62.3'
40'
RFV200WS 200.0" 84.3" 217.0" 207.5" x 91.8" 62.3'
RFV210WS 210.0" 88.6" 227.9" 217.5" x 96.1" 62.3'
RFV220WS 220.0" 92.8" 238.8" 227.5" x 100.3" 62.3'
